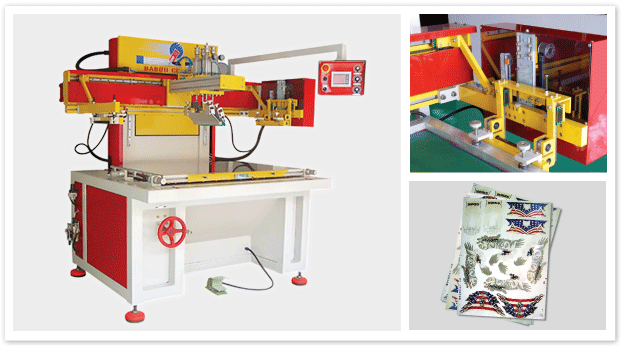

Flat Bed Screen Printing Machine
Model : BBF

The flat bad screen printing machine (BBF) is meet demand on flat print items from posters to panels, pp board, Vinyl. Babou co,.ltd has developed the flat screen printing machine in different formats. Designed with horizontal/vertical guide ways and PLC controlled.

Model	Unit	BBF-900	BBF-1800	BBF-2900
Power	kW	1	1.5	1.5
Table Size��	mm	745x1145	1056x1902	1304x3004
Min. Printing Area	mm	200x200	-	-
Max. Printing Area	mm	700x900	960x1800	1200x2900
Max. Frame	mm	200x600	200x800	200x1000
Min. Frame	mm	880x1420	1150x2430	1500x3300
Substrate Thickness	mm	0.25-30	0.25-30	0.25-30
Max. Speed	pcs/hr	600	300	300
Air Supply	bar	6	6	6
Voltage	Ph/V	1 / 220	3 / 380	3 / 380
Machine Size(LxWxH)	mm	1400x1800x1833	1532x2800x1833	1805x3907x1900
Weight	kg	700	1200	1600
